TVS Draken

TVS Draken

POPULARITY

• This week:2418 views
• All time:781594 views

EXPECTED PRICE

₹ 1,60,000

* Delhi. May vary.

Expected

USER OPINION

• Like
  12661

• Dislike
  2492

FeaturesSee full specifications

Displacement	249.2 cc
Maximum Power	38.5 BHP @ 12000 rpm
Maximum Torque	23 NM @ 9500 rpm
Gearbox	6 Speed
Ground Clearance	170 mm
Kerb/Wet Weight	134 kg
Fuel Tank Capacity	10 litres
Mileage (Certified)	33.3 kmpl

GENERAL INFORMATION Note TVS Draken 250 was a concept bike and it won't be launched in India. The production model based on Draken is Apache RTR 200 and it was recently launched for Rs. 88,990 (ex-showroom Delhi). Type Naked Shades/Colors White Production Concept Motorcycle Frame/Chassis Aluminium Trellis Frame Production Model TVS Apache RTR 200 Bike Category (cc) 200cc-250cc ENGINE, POWER & TORQUE Displacement 249.2 cc Maximum Power 38.5 BHP @ 12000 rpm Maximum Torque 23 NM @ 9500 rpm Engine Description 249.2cc, 4-valve, DOHC, Short-Stroke, Single-Cylinder, Race Inspired Engine Cooling Liquid Cooling Compression Ratio 11.5:1 Bore 77 mm Stroke 53.5 mm Number of Cylinders 1 Power-to-weight Ratio 287.31 BHP per ton Torque-to-Weight Ratio 171.64 NM per ton Specific Output 154.49 BHP per litre Fuel Type Petrol TRANSMISSION Gearbox 6 Speed Clutch Wet Multiplate Gear Pattern 1 down, 5 up BRAKES Front Brake Single Petal Disc Rear Brake Single Petal Disc SUSPENSION Front Suspension USD Telescopic Forks Rear Suspension Offset Monoshock Suspension WHEELS & TYRES Front Tyre 120/70 x 17 Rear Tyre 160/50 x 17 Wheel Type Alloys BATTERY Battery Type Maintenance Free DIMENSIONS, WEIGHT & CAPACITIES Ground Clearance 170 mm Wheelbase 1340 mm Kerb/Wet Weight 134 kg Fuel Tank Capacity 10 litres PERFORMANCE & MILEAGE Mileage (City, approx.) 20 kmpl Mileage (Highway, approx.) 25 kmpl Mileage (Certified) 33.3 kmpl INSTRUMENT CONSOLE Speedometer Digital Tachometer Analog Trip Meter Digital Odometer Digital Clock Digital Fuel Gauge Digital COMFORT & CONVENIENCE Electric Start Pillion Footrest Pass Light Step-up Seat/Split Seat LIGHTING Head Light Halogen TVS Draken Review

Overview

TVS Motors India showcased a 250cc street fighter concept at the 2014 Auto Expo. Known as Draken X-21, the bike is still in concept stage and will probably see production by the end of 2015, but its design and features clearly hints at some great product offerings with exceptional technological advancements for the coming future in the Indian market. Also, the bike gives a little peak at what would be the next-generation Apache RTRs look like. It will be launched by the end of 2015 in the Indian market and presumably will be targeted at urban youths. Let's check out this little monster in detail.

Design and Style

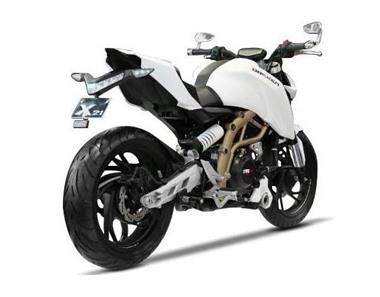

TVS Draken X-21 250cc Concept has got a lot of noteworthy features and praiseworthy design elements which includes an exposed aluminum trellis frame, a compact and unique LED headlight with daytime-running lamps, bar end rear view mirrors on a nicely placed handlebar, an underbelly exhaust which is a high-performance reverse flow exhaust system according to the company to boost power and efficiency while maintaining a muscular yet minimal design, low riding position, a well sculpted fuel tank with sharp extensions and scoops for aerodynamic purposes, a short tail with a bright tail light and turn indicators, a rear step-up seat, a maintenance free battery, self-start and alloyed wheels with 120 section rubber at front and 160 section rubber at rear. This sturdy naked bike has a large wheelbase of 1340mm for a stable ride and a good ground clearance of 170mm for a bump-free ride. It has a fuel tank capacity of 10liters and a dry weight of 134kgs.

Engine and Gearbox

TVS Draken X-21 250cc Concept has got a 249.2cc, 4-stroke, liquid-cooled, single-cylinder, 4-valves DOHC based engine with a maximum power of 38.5bhp at 12,000rpm and a maximum torque of 23Nm at 9,500rpm and is mated with a six speed gearbox transmission with a company claimed mileage of 33.3kmpl.

Instrument Console

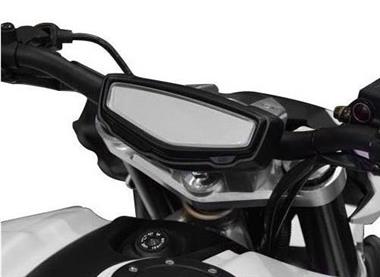

The bike has an all-digital active matrix LCD display instrument console with a digital fuel gauge, speedometer and tachometer, two digital trip meters, a pass light, a stand alarm and the low fuel, oil and battery indicators.

Suspension and Braking

TVS Draken X-21 250cc Concept has got petal disk brakes at front and rear. The suspension system includes an inverted telescopic fork at front and an off-set monoshock at the rear. ABS is standard.

Price and Variants

TVS Draken X-21 250cc Concept will be available in a single variant in 4-5 shades at an expected ex-showroom, Delhi price of INR 1.60 lakhs, which may vary. It will be a strong contender in the highly competitive 200-300cc segment will certainly give a tough competition to its rivals such as Pulsar 200 NS and KTM Duke 200.

TVS Draken was a concept bike and the production model based on it is Apache RTR 200, it was launched in India on January 20 and the base model of Apache RTR 200 is priced @ Rs. 88,990. Follow this URL to know more about Apache 200 - http://autos.maxabout.com/bikes/tvs/apache/apache-rtr-200.very usefull ,nicelooking bike
